Automated Deicer Spray Systems
Your ice-free spray solution. Our automated deicer systems provide consistent introduction of Liquid Heat and eliminate human error. A planned approach allows you to stay ahead of the cold, eliminate downtime and product waste.
You know what you need: conveyors and belts that are consistently ice-free. It’s the extreme winter challenge – and one that Zircon has solved.
After 30+ years of learning by trial and error, we developed the industry’s state-of-the-art DEICER SPRAY SYSTEM for applying Liquid Heat deicer.
Every industry today is operating with a smaller workforce while demanding higher productivity. Spray systems bridge the gap – by removing labor-intensive jobs but still providing consistent delivery of product.
Choose the Zircon DEICER SPRAY SYTEM that works best for your application & cold weather needs:Choose the Zircon DEICER SPRAY SYTEM that works best for your application & cold weather needs:

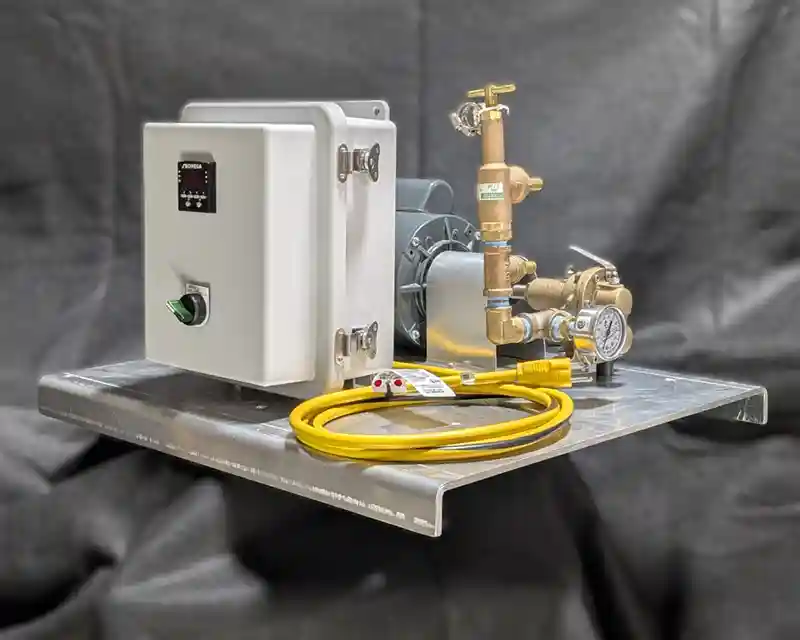

ON/OFF TIMER CONTROL SYSTEM
- Control system capable of operating in single cycle mode according to “on time” or in multiple cycle by activating off timer
- On time setting located inside control box.
- Off timer is located on outside of control box.
- Control system has illuminated selector switch to allow the operator to select: OFF - TIMED CYCLE - MANUAL SPRAY override.
- The system is powered by a 110-120 VAC, 60 Hz, 15 Amp, 10-foot cord.
- System mounted on base plate with pump motor and all necessary mounted fittings. This system can only be installed on a one delivery point pump base.

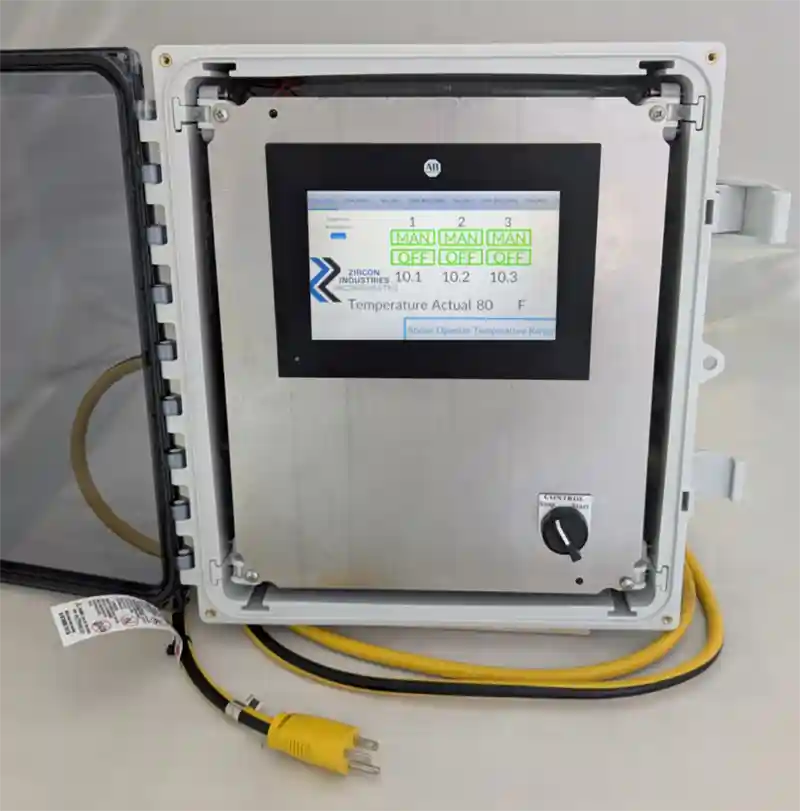

ALLEN BRADLEY AUTOMATED SPRAY SYSTEM
- This is a liquid heat spray control system consisting of a 7” Optix color touch screen operator interface, an Allen Bradley PLC that controls all the functions of the system and a polycarbonate enclosure with a clear front cover to protect the operator interface.
- Standard input power requirement is 120 VAC, 15 A. The system will operate at temperatures down to -50 degrees F.
- System capable of spraying up to 3 fully automated spray points.
- System will start spraying at programmed spray temp and will only spray if belt is in motion.
- Each spray point can be programmed with 3 temperature zones that will allow for more frequent spray cycles as you drop into lower temperature zones.
- Plumbing build out for multiple spray points will have pressure regulators to adjust pressure to get desired pressure of spray bar.
- System mounted on base plate with pump motor and all necessary mounted fittings.
- System can be remotely controlled with another Allen Bradley System.

THE NEW ALLEN BRADLEY SYSTEM EASE OF OPERATIONAL PROGRAMMING MAKES IT AN EXCELLENT CHOICE TO INCORPORATE MULTI-SPRAY POINT AUTOMATION.

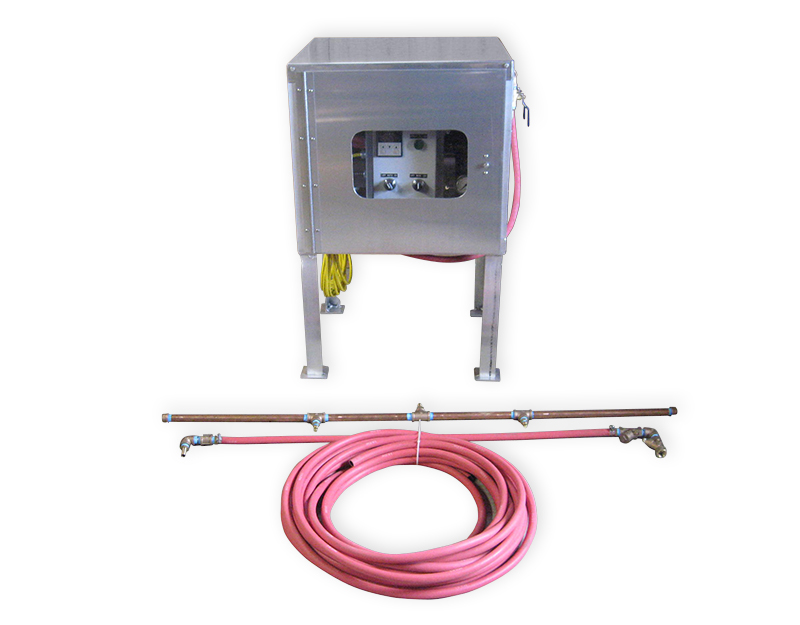

REMOTE CONTROLLED SPRAY SYSTEM
- Liquid heat delivery system that is controlled remotely by the customer PLC to have up to (3) three-position illuminated selector switches to allow the operator to select: OFF - REMOTE CYCLE - MANUAL SPRAY for each delivery point.
- Multispray systems to be plumbed with pressure regulators and solenoids where required.
- Control box comes complete with relay and starters for each spray point.
- System mounted on base plate with pump motor and all necessary mounted fittings.

EXCELLENT CHOICE FOR HARD TO REACH AREAS!
OPTIONAL ACESSORIES FOR ALL SYSTEMS
- Custom open aluminum stand

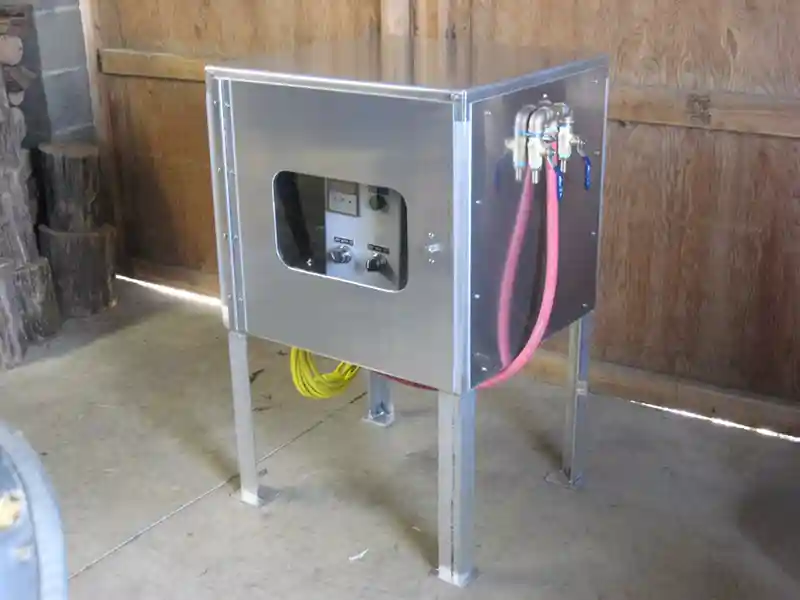

- Custom enclosed aluminum stand with see thru door and latch.
- Custom bronze spray bar with low pressure brass nozzles
- K5 low pressure brass nozzles – additional
- Float switch low level light indicator on control box
- ½” Pliable red hose - additional

With Zircon’s expertise in deicing, it’s no surprise — our spray systems are the most effective, durable and long-lasting system on the market.
The bottom line: workforces are being scaled down, and the only way to maintain productivity is to remove human error and automate where needed.
Stay ahead of the cold and eliminate costly downtime by automating delivery of LIQUID HEAT.
No product waste!!
